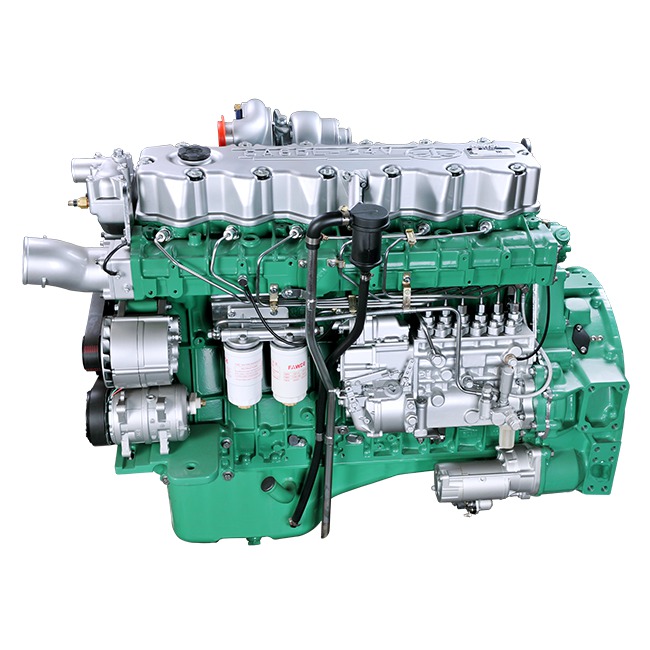

محرك السيارة EURO II
| Model | 6DF2D-17 | 6DF2D-18 | 6DF2D-19 | 6DF2D-20 | 6DF2D-21 | 6DF2D-22 |
| Type | 6-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled | |||||
| Bore×Stroke（mm） | 110×115 | |||||
| Valves/cylinder | 2 | |||||
| Displacement (L) | 6.557 | |||||
| Rated power | 125 | 132 | 140 | 147 | 155 | 162 |
| Rated speed (r/min) | 2300 | |||||
| Net power/speed（kW/r/min） | 123 | 130 | 138 | 145 | 153 | 160 |
| Maximum torque (Nm) | 620 | 650 | 680 | 720 | 750 | 780 |
| Maximum torque speed(r/min) | 1400 -1600 | |||||
| Fuel consumption (g/kW·h) | 202 | |||||
| Smoke (m-1) | ≤3.0 | |||||
| Noise dB(A) | ≤98 | |||||
| Emission Compliant（TAS） | EUROⅡ | |||||
| Net Mass (kg) | 700 | |||||
| Length×Width×Height（mm) | 1200×680×1030 | |||||
| Model | 6DF2-22 | 6DF2-23 | 6DF2-24 | 6DF2-25 | 6DF2-26 |
| Type | 6-cylinder in-line, direct injection, water cooling, turbocharged inter-cooled | ||||
| Bore×Stroke (mm) | 110×125 | ||||
| Valves/cylinder | 2 | ||||
| Displacement (L) | 7.127 | ||||
| Rated power | 160 | 170 | 177 | 184 | 192 |
| Rated speed (r/min) | 2300 | ||||
| Net power/speed（kW/r/min） | 157 | 167 | 174 | 181 | 189 |
| Maximum torque (Nm) | 780 | 850 | 890 | 910 | 930 |
| Maximum torque speed (r/min) | 1300-1500 | ||||
| Fuel consumption (g/kW·h) | 202 | ||||
| Smoke (m-1) | ≤3.0 | ||||
| Noise dB (A) | ≤ 98 | ||||
| Emission Compliant (TAS) | EURO Ⅱ | ||||
| Net Mass (kg) | 700 | ||||
| Length×Width×Height (mm) | 1320×680×1100 | ||||
